DN6848 Datasheet - Panasonic

DN6848_Panasonic.pdf

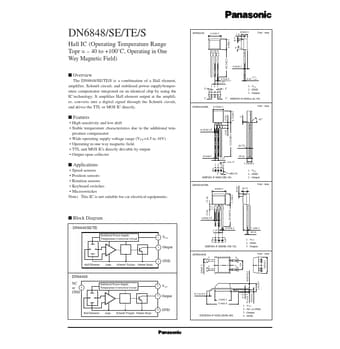

Preview of DN6848 PDF
DN6848 Datasheet Preview Page 2 DN6848 Datasheet Preview Page 3

Datasheet Details

Part number:

DN6848

Manufacturer:

Panasonic

File Size:

39.21 KB

Description:

Hall ic.

DN6848, Hall IC

Hall IC (Operating Temperature Range Topr = 40 to +100˚C, Operating in One Way Magnetic Field) s Overview The DN6848/SE/TE/S is a combination of a Hall element, amplifier, Schmitt circuit, and stabilized power supply/temperature compensator integrated on an identical chip by using the IC technology.

It amplifies Hall element output at the amplifier, converts into a digital signal through the Schmitt circuit, and drives the TTL or MOS IC directly.

1 2 3 5˚ 2˚ 4.0±0.3 10.5±0.5 0.8±0.1

DN6848 Features

* High sensitivity and low drift

* Stable temperature characteristics due to the additional tem

* perature compensator Wide operating supply voltage range (VCC=4.5 to 16V) Operating in one way magnetic field TTL and MOS ICs directly drivable by ou
