DN6851 - Hall IC

DN6851 Description

DN6851 Hall IC (Operating Supply Voltage Range VCC=3.6 to 16V, Operating in Alternative Magnetic Field) s Overview The DN6851 is an integrated circuit.

DN6851 Features

* Wide range of supply ; 3.6 to 16V
* Operating in alternative magnetic field.
* TTL and MOS ICs directly drivable by output
* Semipermanent service life because of no contact parts
* Drivable with a small magnet
* 3-pin SIL plastic package (3-SIP) 10.

DN6851 Applications

* Speed sensors
* Position sensors
* Rotation sensors
* Keyboard switches
* Microswitches Note) This IC is not suitable for car electrical equipments. 2˚ 2˚ SSIP003-P-0000A (E-3S) 1 : VCC 2 : GND 3 : Output s Block Diagram Stabilized power supply 1 27kΩ 3

📥 Download Datasheet

Preview of DN6851 PDF

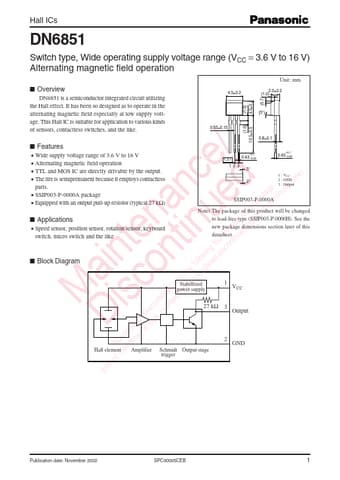

datasheet Preview Page 2 datasheet Preview Page 3
