DN6849 - Hall IC

DN6849 Description

Hall IC (Operating Temperature Range Topr = * 40 to +100˚C, Operating in Alternative Magnetic Field) 4.0±0.3 10.5±0.5 0.8±0.1 s Overview T.

DN6849 Features

* High sensitivity and low drift
* Stable temperature characteristics due to the additional tem
* perature compensator Wide operating supply voltage range (VCC=4.5 to 16V) Operating in alternative magnetic field TTL and MOS ICs directly drivable b

DN6849 Applications

* Speed sensors
* Position sensors
* Rotation sensors
* Keyboard switches
* Microswitches Note) This IC is not suitable for car electrical equipments. 2˚ R0.25 SSIP003-P-0000 (SE-3S) 4.0±0.3 3.3±0.3 (0.6) 0.5±0.1 10.0±0.6 DN6849TE (0.7) s Block Diagram

📥 Download Datasheet

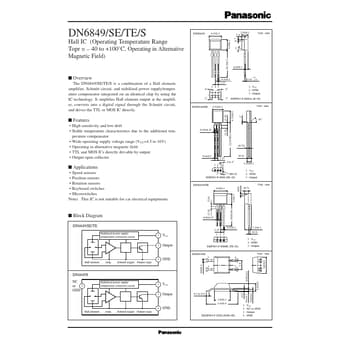

Preview of DN6849 PDF
