DN6852 Hall IC

Hall ICs DN6852 Switch type, Wide operating supply voltage range (VCC = 3.6 V to 16 V) One-way magnetic field operation Overview DN6852 is a semiconductor integrated circuit utilizing the Hall effect. It has been so designed as to operate in the unidirectional magnetic field especially at low supply voltage. This Hall IC is suitable for application to various kinds of sensors, contactless switches, and the like. 4.5±0.2 0.55±0.15 (1.0) 4.0±0.2 (0.7) Unit: mm 2.0±0.2 (1.0) (5°) (1.0).

DN6852 Features

* Wide supply voltage range of 3.6 V to 16 V

* Unidirectional magnetic field operation

* TTL and MOS IC are directly drivable by the output.

* The life is semipermanent because it employs contactless parts.

* SSIP003-P-0000A package

* Open collector ou

DN6852 Datasheet (83.49 KB)

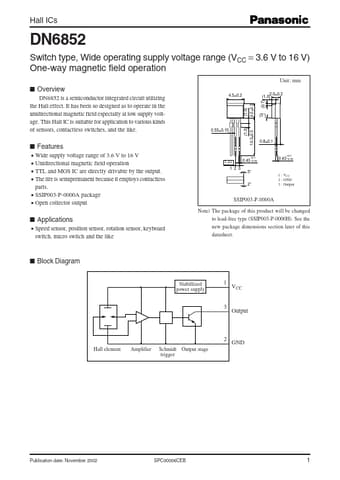

DN6852 Datasheet Preview — Preview of DN6852 PDF

Datasheet Details

Part number:

DN6852

Manufacturer:

Panasonic

File Size:

83.49 KB

Description:

Hall ic.
