DN65

ZXSC310 Solution

DN65 General Description

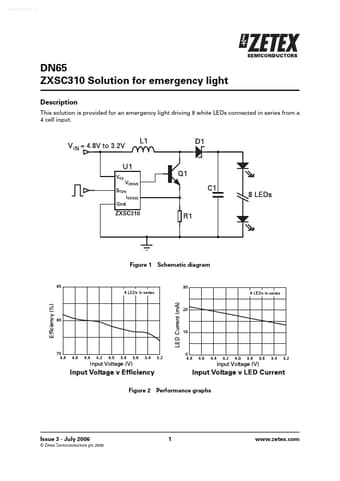

This solution is provided for an emergency light driving 8 white LEDs connected in series from a 4 cell input. ZXSC310 Figure 1 Schematic diagram Figure 2 Performance graphs Issue 3 - July 2006 © Zetex Semiconductors plc 2006 1 www.zetex.com DN65 Reference U1 Q1 D1 L1 R1 C1 LED1 Part no. ZX.

DN65 Datasheet (140.04 KB)

Preview of DN65 PDF

Datasheet Details

Part number:

DN65

Manufacturer:

Zetex Semiconductors

File Size:

140.04 KB

Description:

Zxsc310 solution.
