ZTX322 NPN SILICON PLANAR HIGH SPEED SWITCHING TRANSISTORS

ZTX322 Features

* 15 Volt VCEO

* fT=600 MHz APPLICATIONS

* VHF/UHF operation ZTX320 ZTX321 ZTX322 ZTX323 C B E ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Base Current Continuous Collector Current Power Dissipation at Tamb=25°C Operating

ZTX322_ZetexSemiconductors.pdf

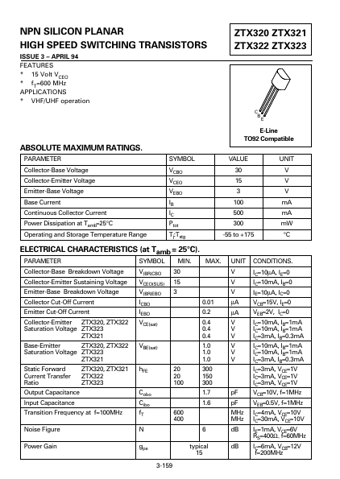

ZTX322 Datasheet Preview — Preview of ZTX322 PDF

Datasheet Details

Part number:

ZTX322

Manufacturer:

Zetex Semiconductors

File Size:

55.47 KB

Description:

Npn silicon planar high speed switching transistors.
