ZTX327 Datasheet - Zetex Semiconductors

ZTX327 NPN SILICON PLANAR R.F. MEDIUM POWER TRANSISTOR

NPN SILICON PLANAR R.F. MEDIUM POWER TRANSISTOR ISSUE 2 – MARCH 94 ZTX327 C B E ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Operating and Storage Temperature Range SYMBOL VCBO VCEO VCER VEBO IC Ptot Tj:Tstg 55 30 55 3.5 E-Line TO92 Compatible VALUE UNIT V V V V mA W °C 400 1.5 -55 to +175 ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated). PARAMETER Collector-Base .

ZTX327_ZetexSemiconductors.pdf

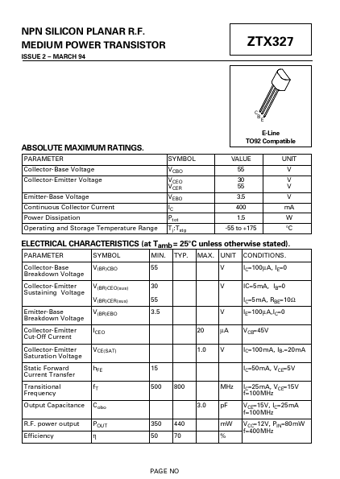

Preview of ZTX327 PDF

Datasheet Details

Part number:

ZTX327

Manufacturer:

Zetex Semiconductors

File Size:

49.01 KB

Description:

Npn silicon planar r.f. medium power transistor.
