ZTX325 - NPN SILICON PLANAR RF TRANSISTOR

ZTX325 Description

NPN SILICON PLANAR RF TRANSISTOR ISSUE 2 – MARCH 94 .

ZTX325 Features

* High fT, 1.3GHz
* Low noise < 5dB at 500MHz
* Power output at 500MHz >175mW ZTX325 C B ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Mean Collector Current (Averaged over 100µs) Collector Current Power Dissipation at Tamb=2

📥 Download Datasheet

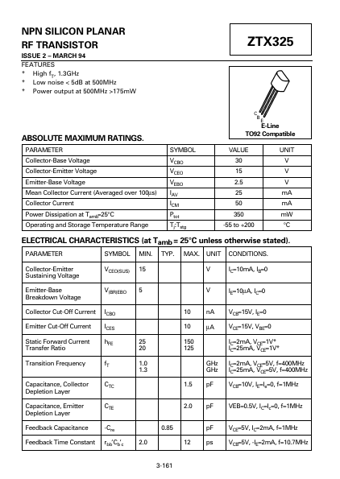

Preview of ZTX325 PDF
datasheet Preview Page 2

Datasheet Details

Part number
ZTX325
Manufacturer
Zetex Semiconductors
File Size
52.18 KB
Datasheet
ZTX325_ZetexSemiconductors.pdf
Description
NPN SILICON PLANAR RF TRANSISTOR
