CD40106B

CMOS Hex Schmitt-Trigger Inverters

CD40106B Features

* 1 Schmitt-Trigger Inputs

* Hysteresis Voltage (Typical):

* 0.9 V at VDD = 5 V

* 2.3 V at VDD = 10 V

* 3.5 V at VDD = 15 V

* Noise Immunity Greater Than 50%

* No Limit On Input Rise and Fall Times

* Standardized, Symmetrical Output Char

CD40106B General Description

The CD40106B device consists of six Schmitt-Trigger inputs. Each circuit functions as an inverter with Schmitt-Trigger input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage (VP) and the negative-going voltages (VN).

CD40106B Datasheet (1.38 MB)

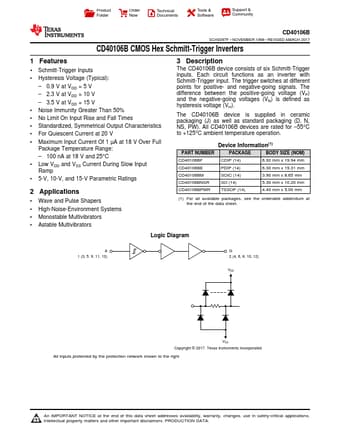

Preview of CD40106B PDF

Datasheet Details

Part number:

CD40106B

Manufacturer:

Texas Instruments ↗

File Size:

1.38 MB

Description:

Cmos hex schmitt-trigger inverters.
Product Folder Order Now Technical Documents Tools & Software Support & Community CD40106B SCHS097F

* NOVEMBER 1998

* REVISED MAR.

📁 Related Datasheet

CD40106B - CMOS Hex Schmitt Triggers (RCA)
.

CD40106BC - Hex Schmitt Trigger (National Semiconductor)
CD40106BM CD40106BC Hex Schmitt Trigger February 1988 CD40106BM CD40106BC Hex Schmitt Trigger General Description The CD40106B Hex Schmitt Trigger .

CD40106BE - CMOS Hex Schmitt-Trigger Inverters (Texas Instruments)
Product Folder Order Now Technical Documents Tools & Software Support & Community CD40106B SCHS097F – NOVEMBER 1998 – REVISED MARCH 2017 CD40106B.

CD40106BF - CMOS Hex Schmitt-Trigger Inverters (Texas Instruments)
Product Folder Order Now Technical Documents Tools & Software Support & Community CD40106B SCHS097F – NOVEMBER 1998 – REVISED MARCH 2017 CD40106B.

CD40106BM - Hex Schmitt Trigger (National Semiconductor)
CD40106BM CD40106BC Hex Schmitt Trigger February 1988 CD40106BM CD40106BC Hex Schmitt Trigger General Description The CD40106B Hex Schmitt Trigger i.

CD40106BM - CMOS Hex Schmitt-Trigger Inverters (Texas Instruments)
Product Folder Order Now Technical Documents Tools & Software Support & Community CD40106B SCHS097F – NOVEMBER 1998 – REVISED MARCH 2017 CD40106B.

CD40106BMS - CMOS Hex Schmitt Triggers (Intersil Corporation)
CD40106BMS December 1992 CMOS Hex Schmitt Triggers Pinout CD40106BMS TOP VIEW A 1 G=A 2 B 3 H=B 4 14 VDD 13 F 12 L = F 11 E 10 K = E 9 D 8 J=D Featu.

CD40100B - CMOS 32-Stage Static Left/Right Shift Register (RCA)
.

TAGS

CD40106B CMOS Hex Schmitt-Trigger Inverters Texas Instruments

Image Gallery

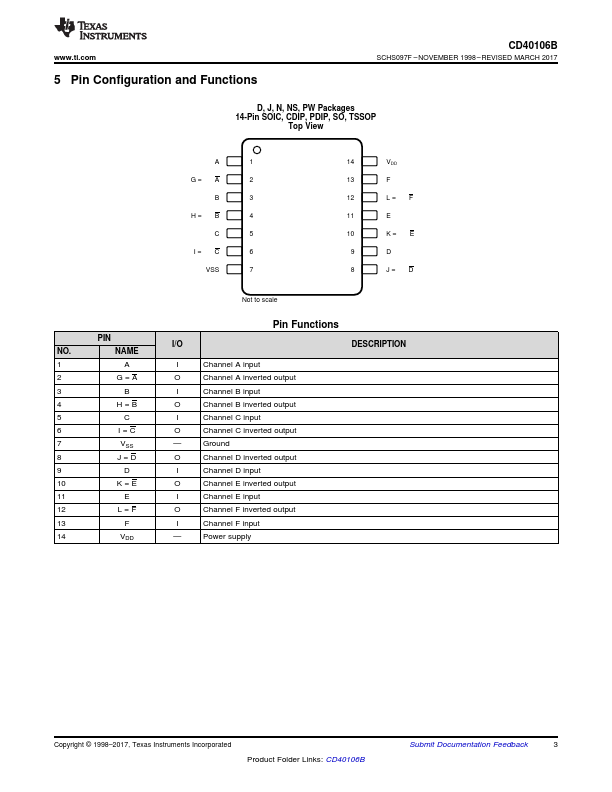

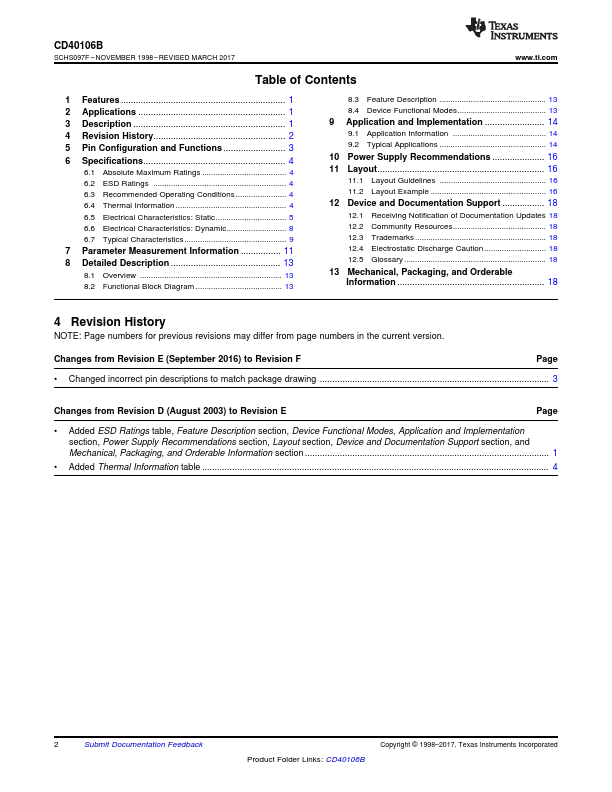

CD40106B Datasheet Preview Page 2 CD40106B Datasheet Preview Page 3
