CD74HCT10

Triple 3-Input NAND Gates

CD74HCT10 Features

* LSTTL input logic compatible

* VIL(max) = 0.8 V, VIH(min) = 2 V

* CMOS input logic compatible

* II ≤ 1 µA at VOL, VOH

* Buffered inputs

* 4.5 V to 5.5 V operation

* Wide operating temperature range: -55°C to +125°C

* Supports fanout u

CD74HCT10 General Description

This device contains three independent 3-input NAND gates. Each gate performs the Boolean function Y = A
* B
* C in positive logic. Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) CD74HCT10M SOIC (14) 8.70 mm × 3.90 mm CD74HCT10E PDIP (14) 19.30 mm × 6.40 mm CD54HCT10F .

CD74HCT10 Datasheet (1.04 MB)

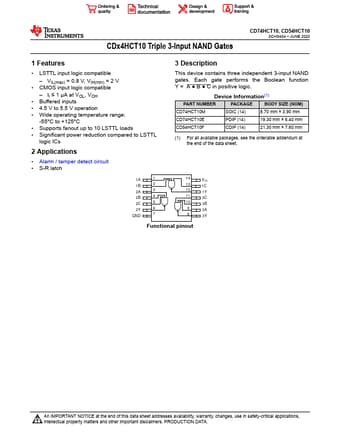

Preview of CD74HCT10 PDF

Datasheet Details

Part number:

CD74HCT10

Manufacturer:

Texas Instruments ↗

File Size:

1.04 MB

Description:

Triple 3-input nand gates.
