CD74HCT10E Datasheet, Gates, Texas Instruments

CD74HCT10E Features

• Gates
• LSTTL input logic compatible
    – VIL(max) = 0.8 V, VIH(min) = 2 V
• CMOS input logic compatible
    – II ≤ 1 µA at VOL, VOH
• Buffere

PDF File Details

Part number:

CD74HCT10E

Manufacturer:

Texas Instruments ↗

File Size:

1.04MB

Download:

📄 Datasheet

Description:

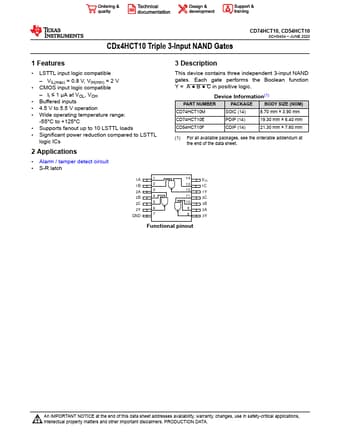

Triple 3-input nand gates. This device contains three independent 3-input NAND gates. Each gate performs the Boolean function Y = A

B

C in

CD74HCT10E Application

• Applications
• Alarm / tamper detect circuit
• S-R latch 3 Description This device contains three independent 3-input NAND gates.
