CSD25484F4T, CSD25484F4 P-Channel Power MOSFET

CSD25484F4T Description

Product Folder Order Now Technical Documents Tools & Software Support & Community CSD25484F4 SLPS551A * MAY 2015 * REVISED AUGUST.
This 80-mΩ,. 20-V, P-Channel FemtoFET™ MOSFET is designed and optimized to minimize the footprint in many handheld and mobile applications.

CSD25484F4T Features

* 1 Low On-Resistance
* Ultra-Low Qg and Qgd
* Low-Threshold Voltage
* Ultra-Small Footprint (0402 Case Size)
* 1.0 mm × 0.6 mm
* Ultra-Low Profile
* 0.2-mm Height
* Integrated ESD Protection Diode
* Rated > 4-kV HBM
* Ra

CSD25484F4T Applications

* Optimized for Load Switch Applications
* Optimized for General Purpose Switching Applications
* Battery Applications

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CSD25484F4T, CSD25484F4. Please refer to the document for exact specifications by model.

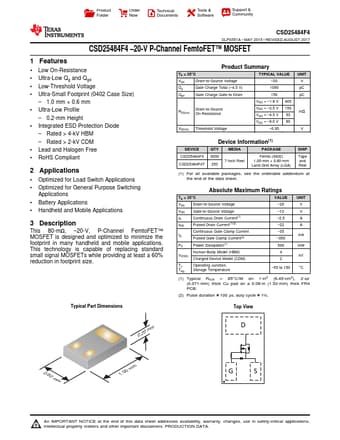

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CSD25484F4T, CSD25484F4
Manufacturer
Texas Instruments ↗
File Size
1.12 MB
Datasheet
CSD25484F4-etcTI.pdf
Description
P-Channel Power MOSFET
Note
This datasheet PDF includes multiple part numbers: CSD25484F4T, CSD25484F4.
Please refer to the document for exact specifications by model.
