DLPC200

Digital Controller

DLPC200 Features

* 1 Required for Reliable Operation of the DLP5500 DMD

* Stream Data Realtime With Two 24-Bit Input Ports (RGB888)

* Port 1 Supports HDMI Input

* Port 2 Supports Input Via an Expansion Card

* High-Speed Pattern Sequence Mode

* Download Pattern Data Dire

DLPC200 General Description

The DLPC200 performs image processing and control and DMD data formatting to drive the 0.55 XGA DMD (DLP5500). This digital controller gives users reliable, independent high-speed micromirror control. It is used for structured light, display, and other spatial light modulation (SLM) applications. So.

DLPC200 Datasheet (1.00 MB)

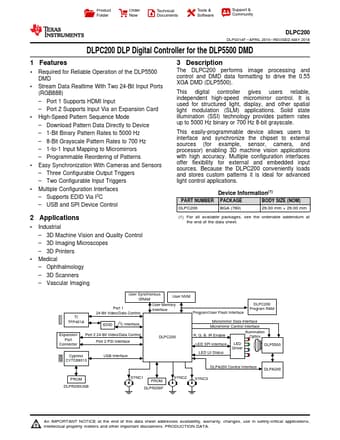

Preview of DLPC200 PDF

Datasheet Details

Part number:

DLPC200

Manufacturer:

Texas Instruments ↗

File Size:

1.00 MB

Description:

Digital controller.
Product Folder Order Now Technical Documents Tools & Software Support & Community DLPC200 DLPS014F

* APRIL 2010

* REVISED MAY 201.
