DLPC230-Q1

Automotive Digital Micromirror Controller

DLPC230-Q1 Features

* Qualified for automotive applications

* AEC-Q100 qualified with the following results:

* Device temperature grade 2:

* 40°C to 105°C ambient operating temperature

* Device HBM ESD Classification Level 2

* Device CDM ESD Classification Level C4B

DLPC230-Q1 General Description

The DLPC23x-Q1 digital micromirror display (DMD) controller for automotive applications is used in chipsets for interior applications such as HUD and exterior application such as high resolution headlight. The DLP5530-Q1 chipset includes a 0.55” DMD and the DLP4620-Q1 chipset includes a 0.46" DMD. .

DLPC230-Q1 Datasheet (3.05 MB)

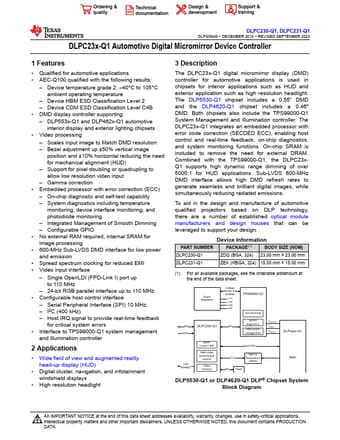

Preview of DLPC230-Q1 PDF

Datasheet Details

Part number:

DLPC230-Q1

Manufacturer:

Texas Instruments ↗

File Size:

3.05 MB

Description:

Automotive digital micromirror controller.
DLPC230-Q1, DLPC231-Q1 DLPS054G DECEMBER 2015 REVISED SEPTEMBER 2023 DLPC23x-Q1 Automotive Digital Micromirror Device Controller .
