DLPC120-Q1

Automotive DMD Controller

DLPC120-Q1 Features

* AEC-Q100 qualified for automotive applications:

* Temperature grade 2:

* 40°C to 105°C ambient

* Compatibility with three DMD devices:

* DLP3030-Q1: 0.3 WVGA S450

* DLP3020-Q1: 0.3 WVGA S247

* DLP3021-Q1: 0.3 WVGA S247

* Video input in

DLPC120-Q1 General Description

The DLPC120-Q1 DMD display controller for automotive applications is part of a chipset compatible with one of three digital micromirror devices (DMDs), DLP3030-Q1, DLP3020-Q1, or DLP3021-Q1. The core DLPC120-Q1 logic is responsible for accepting video input and formatting the data to display on the.

DLPC120-Q1 Datasheet (1.35 MB)

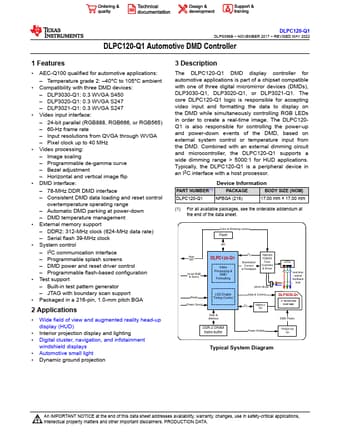

Preview of DLPC120-Q1 PDF

Datasheet Details

Part number:

DLPC120-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.35 MB

Description:

Automotive dmd controller.
