DLPC231-Q1, DLPC230-Q1 Datasheet - Texas Instruments

DLPC231-Q1 Automotive Digital Micromirror Controller

The DLPC23x-Q1 digital micromirror display (DMD) controller for automotive applications is used in chipsets for interior applications such as HUD and exterior application such as high resolution headlight. The DLP5530-Q1 chipset includes a 0.55” DMD and the DLP4620-Q1 chipset includes a 0.46" DMD. .

DLPC231-Q1 Features

* Qualified for automotive applications

* AEC-Q100 qualified with the following results:

* Device temperature grade 2:

* 40°C to 105°C ambient operating temperature

* Device HBM ESD Classification Level 2

* Device CDM ESD Classification Level C4B

DLPC230-Q1-etcTI.pdf

This datasheet PDF includes multiple part numbers: DLPC231-Q1, DLPC230-Q1. Please refer to the document for exact specifications by model.

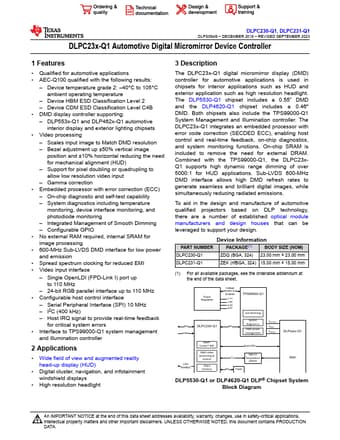

DLPC231-Q1 Datasheet Preview Page 2 DLPC231-Q1 Datasheet Preview Page 3

Datasheet Details

Part number:

DLPC231-Q1, DLPC230-Q1

Manufacturer:

Texas Instruments ↗

File Size:

3.05 MB

Description:

Automotive digital micromirror controller.

Note:

This datasheet PDF includes multiple part numbers: DLPC231-Q1, DLPC230-Q1.
Please refer to the document for exact specifications by model.
