DLPC150

Digital Controller

DLPC150 Features

* 1 Display controller required for reliable operation of the DLP2010 and DLP2010NIR DMDs

* High-speed pattern sequence mode

* 1-Bit binary pattern rates to 2880 Hz

* 1-to-1 input mapping to micromirrors

* Easy synchronization with cameras and sensors

DLPC150 General Description

The DLPC150 controller provides a convenient, reliable, and multi-functional interface between user electronics and the visible DLP2010 or the nearinfrared (NIR) DLP2010NIR digital micromirror device (DMD) to steer light and create patterns with highspeed, precision, and efficiency. The DLPC150 cont.

DLPC150 Datasheet (2.06 MB)

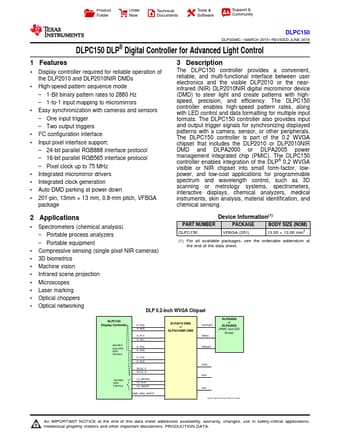

Preview of DLPC150 PDF

Datasheet Details

Part number:

DLPC150

Manufacturer:

Texas Instruments ↗

File Size:

2.06 MB

Description:

Digital controller.
Product Folder Order Now Technical Documents Tools & Software Support & Community DLPC150 DLPS048C

* MARCH 2015

* REVISED JUNE 20.
