DS90CR218A

+3.3V Rising Edge Data Strobe LVDS

DS90CR218A Features

* 1

* 12 to 85 MHz Shift Clock Support

* 50% Duty Cycle on Receiver Output Clock

* Low Power Consumption

* ±1V Common-mode Range (Around +1.2V)

* Narrow Bus Reduces Cable Size and Cost

* Up to 1.785 Gbps Throughput

* Up to 223 Mbytes/sec Bandwidt

DS90CR218A General Description

The DS90CR218A receiver deserializes three input LVDS data streams into 21 bits of CMOS/TTL output data. When operating at the maximum input clock rate of 85 Mhz, the LVDS data is received at 595 Mbps per data channel for a total data throughput of 1.785 Gbit/sec (233 Mbytes/sec). The narrow bus and.

DS90CR218A Datasheet (933.33 KB)

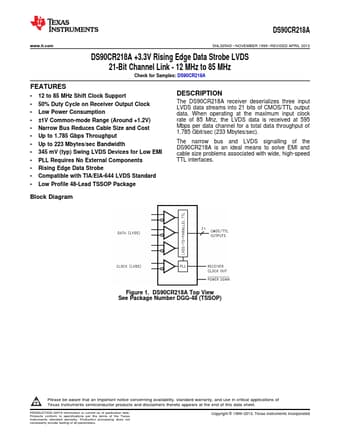

Preview of DS90CR218A PDF

Datasheet Details

Part number:

DS90CR218A

Manufacturer:

Texas Instruments ↗

File Size:

933.33 KB

Description:

+3.3v rising edge data strobe lvds.
DS90CR218A www.ti.com SNLS054D

* NOVEMBER 1999

* REVISED APRIL 2013 DS90CR218A +3.3V Rising Edge Data Strobe LVDS 21-Bit Channel Li.
