DS90CR282

28-Bit Channel Link

DS90CR282 General Description

The DS90CR281 transmitter converts 28 bits of CMOS/TTL data into four LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. Every cycle of the transmit clock 28 bits of input data are sampled and.

DS90CR282 Datasheet (277.82 KB)

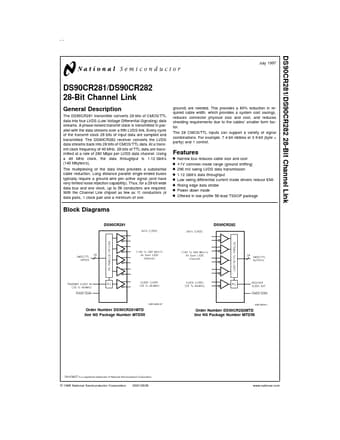

Preview of DS90CR282 PDF

Datasheet Details

Part number:

DS90CR282

Manufacturer:

National Semiconductor

File Size:

277.82 KB

Description:

28-bit channel link.
