DS90CR287 Datasheet - Texas Instruments

DS90CR287 +3.3V Rising Edge Data Strobe LVDS

The DS90CR287 transmitter converts 28 bits of LVCMOS/LVTTL data into four LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. Every cycle of the transmit clock 28 bits of input data are sampled.

DS90CR287 Features

* 1

* 20 to 85 MHz Shift Clock Support

* 50% Duty Cycle on Receiver Output Clock

* 2.5 / 0 ns Set & Hold Times on TxINPUTs

* Low Power Consumption

* ±1V Common-Mode Range (around +1.2V)

* Narrow Bus Reduces Cable Size and Cost

* Up to 2.38 Gbps T

DS90CR287 Datasheet (1.49 MB)

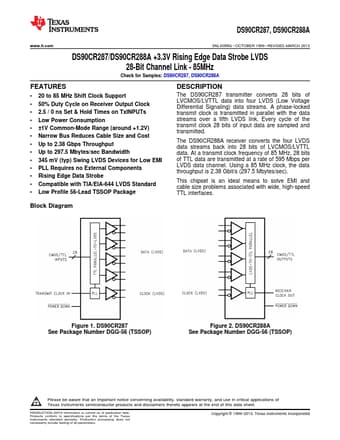

Preview of DS90CR287 PDF
