DS90CR283

28-Bit Channel Link

DS90CR283 Features

* n n n n n n n n n n n 66 MHz clock support Up to 231 Mbytes/s bandwidth Low power CMOS design ( < 610 mW) Power Down mode ( < 0.5 mW total) Up to 1.848 Gbit/s data throughput Narrow bus reduces cable size and cost 290 mV swing LVDS devices for low EMI PLL requires no external components Low profile

DS90CR283 General Description

The DS90CR283 transmitter converts 28 bits of CMOS/TTL data into four LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. Every cycle of the transmit clock 28 bits of input data are sampled and.

DS90CR283 Datasheet (277.77 KB)

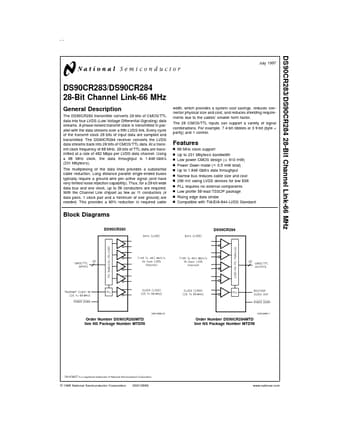

Preview of DS90CR283 PDF

Datasheet Details

Part number:

DS90CR283

Manufacturer:

National Semiconductor

File Size:

277.77 KB

Description:

28-bit channel link.
