DS90CR286A

+3.3V Rising Edge Data Strobe LVDS Receiver

DS90CR286A Features

* n n n n n n n n n n 20 to 66 MHz shift clock support 50% duty cycle on receiver output clock Best

* in

* Class Set & Hold Times on RxOUTPUTs Rx power consumption < 270 mW (typ) @66MHz Worst Case Rx Power-down mode < 200µW (max) ESD rating > 7 kV (HBM), > 700V (EIAJ) PLL requires no exter

DS90CR286A General Description

The DS90CR286A receiver converts the four LVDS data streams (Up to 1.848 Gbps throughput or 231 Megabytes/ sec bandwidth) back into parallel 28 bits of CMOS/TTL data. Also available is the DS90CR216A that converts the three LVDS data streams (Up to 1.386 Gbps throughput or 173 Megabytes/sec bandwidt.

DS90CR286A Datasheet (250.03 KB)

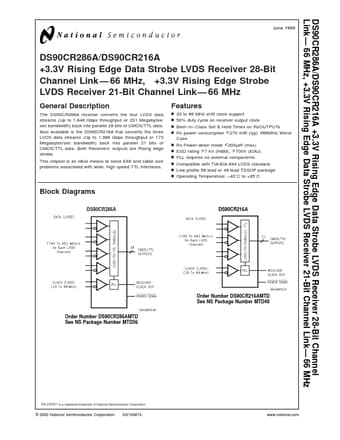

Preview of DS90CR286A PDF

Datasheet Details

Part number:

DS90CR286A

Manufacturer:

National Semiconductor

File Size:

250.03 KB

Description:

+3.3v rising edge data strobe lvds receiver.
DS90CR286A/DS90CR216A +3.3V Rising Edge Data Strobe LVDS Receiver 28-Bit Channel Link

* 66 MHz, +3.3V Rising Edge Data Strobe LVDS Receiver 21.
