DS90CR281

28-Bit Channel Link

DS90CR281 Features

* n n n n n n n n Narrow bus reduces cable size and cost ± 1V common mode range (ground shifting) 290 mV swing LVDS data transmission 1.12 Gbit/s data throughput Low swing differential current mode drivers reduce EMI Rising edge data strobe Power down mode Offered in low profile 56-lead TSSOP package

DS90CR281 General Description

The DS90CR281 transmitter converts 28 bits of CMOS/TTL data into four LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. Every cycle of the transmit clock 28 bits of input data are sampled and.

DS90CR281 Datasheet (277.82 KB)

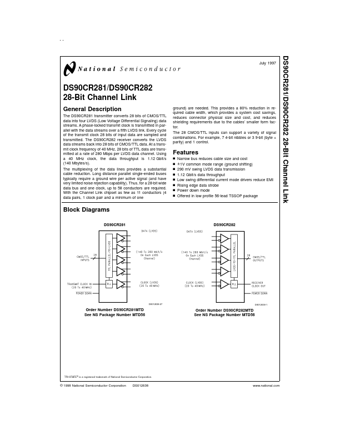

Preview of DS90CR281 PDF

Datasheet Details

Part number:

DS90CR281

Manufacturer:

National Semiconductor

File Size:

277.82 KB

Description:

28-bit channel link.
