DS90UB904Q

18-Bit Color FPD-Link3 Serializer/Deserializer

DS90UB904Q Features

* 1

* 2 10 MHz to 43 MHz Input PCLK Support

* 210 Mbps to 903 Mbps Data Throughput

* Single Differential Pair Interconnect

* Bidirectional Control Interface Channel with I2C Support

* Embedded Clock with DC Balanced Coding to Support AC-Coupled Interconnects

DS90UB904Q General Description

The DS90UB903Q/DS90UB904Q chipset offers a FPD-Link III interface with a high-speed forward channel and a bidirectional control channel for data transmission over a single differential pair. The DS90UB903Q/904Q incorporates differential signaling on both the high-speed forward channel and bidirectio.

DS90UB904Q Datasheet (1.24 MB)

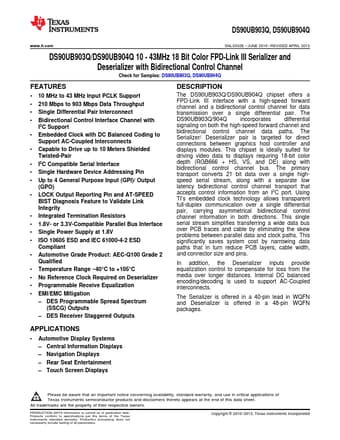

Preview of DS90UB904Q PDF

Datasheet Details

Part number:

DS90UB904Q

Manufacturer:

Texas Instruments ↗

File Size:

1.24 MB

Description:

18-bit color fpd-link3 serializer/deserializer.
DS90UB903Q, DS90UB904Q www.ti.com SNLS332E

* JUNE 2010

* REVISED APRIL 2013 DS90UB903Q/DS90UB904Q 10 - 43MHz 18 Bit Color FPD-Link .
