DS90UB913Q-Q1

DC-Balanced FPD-Link3 Serializer/Deserializer

DS90UB913Q-Q1 Features

* 1 10-MHz to 100-MHz Input Pixel Clock Support

* Single Differential Pair Interconnect

* Programmable Data Payload:

* 10-bit Payload up to 100 MHz

* 12-bit Payload up to 75 MHz

* Continuous Low Latency Bidirectional Control Interface Channel With I2C S

DS90UB913Q-Q1 General Description

The DS90UB91xQ-Q1 chipset offers an FPD-Link III interface with a high-speed forward channel and a bidirectional control channel for data transmission over a single differential pair. The DS90UB91xQ-Q1 chipsets incorporate differential signaling on both the high-speed forward channel and bidirection.

DS90UB913Q-Q1 Datasheet (1.39 MB)

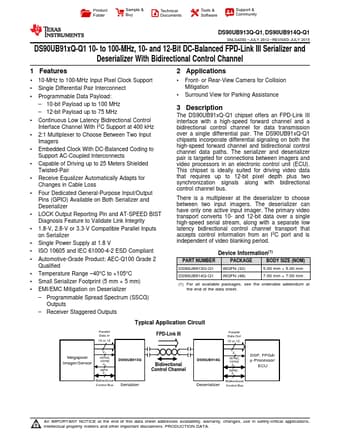

Preview of DS90UB913Q-Q1 PDF

Datasheet Details

Part number:

DS90UB913Q-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.39 MB

Description:

Dc-balanced fpd-link3 serializer/deserializer.
