DS90UB960-Q1

Quad 4.16-Gbps FPD-Link III Deserializer Hub

DS90UB960-Q1 Features

* AEC-Q100 Qualified for Automotive Applications:

* Device Temperature Grade 2:

* 40℃ to +105℃ Ambient Operating Temperature Range

* Quad 4.16-Gbps Deserializer Hub Aggregates Data From up to 4 Sensors Simultaneously

* Supports 2-Megapixel Sensors With Full HD

DS90UB960-Q1 General Description

The DS90UB960-Q1 is a versatile sensor hub capable of connecting serialized sensor data received from four independent video data streams through a FPD-Link III interface. When paired with a DS90UB953-Q1 serializer, the DS90UB960Q1 receives data from sensors such as imagers supporting full HD 1080p.

DS90UB960-Q1 Datasheet (3.93 MB)

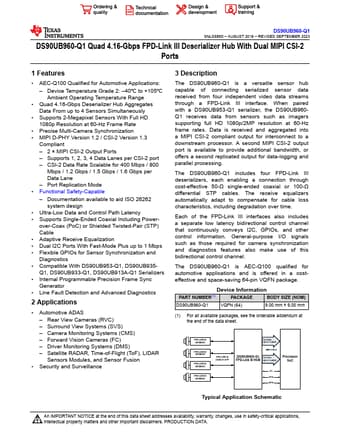

Preview of DS90UB960-Q1 PDF

Datasheet Details

Part number:

DS90UB960-Q1

Manufacturer:

Texas Instruments ↗

File Size:

3.93 MB

Description:

Quad 4.16-gbps fpd-link iii deserializer hub.
DS90UB960-Q1 SNLS589D

* AUGUST 2016

* REVISED SEPTEMBER 2023 DS90UB960-Q1 Quad 4.16-Gbps FPD-Link III Deserializer Hub With Dual MIPI .
