DS90UH947-Q1 Datasheet - Texas Instruments

DS90UH947-Q1 1080p OpenLDI to FPD-Link3 serializer

The DS90UH947-Q1 is an OpenLDI to FPD-Link III bridge device which, in conjunction with the FPD-Link III DS90UH940-Q1/DS90UH948-Q1 deserializers, provides 1-lane or 2-lane high-speed serial streams over cost-effective 50-Ω single-ended coaxial or 100Ω differential shielded twisted-pair (STP) cables..

DS90UH947-Q1 Features

* 1 AEC-Q100 Qualified for Automotive Applications

* Device Temperature Grade 2:

* 40°C to +105°C, TA

* Supports Clock Frequency up to 170 MHz for WUXGA (1920x1200) and 1080p60 Resolutions With 24-Bit Color Depth

* Single and Dual FPD-Link III Outputs

DS90UH947-Q1-etcTI.pdf

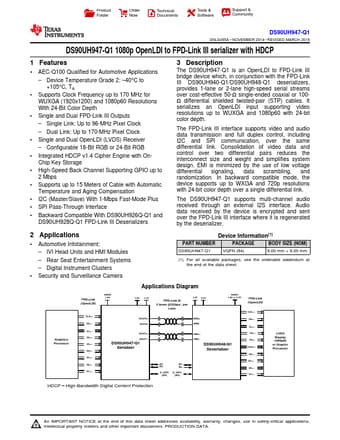

Preview of DS90UH947-Q1 PDF
DS90UH947-Q1 Datasheet Preview Page 2 DS90UH947-Q1 Datasheet Preview Page 3

Datasheet Details

Part number:

DS90UH947-Q1

Manufacturer:

Texas Instruments ↗

File Size:

2.30 MB

Description:

1080p openldi to fpd-link3 serializer.
