DS90UH940-Q1 - 1080p FPD-Link3 to CSI-2 Deserializer

Texas Instruments

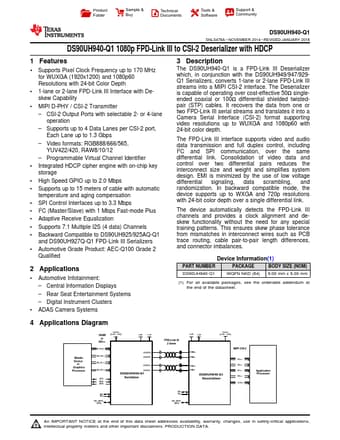

DS90UH940-Q1 Datasheet Preview — Preview of DS90UH940-Q1 PDF

Datasheet Details

Part number	DS90UH940-Q1
Manufacturer	Texas Instruments ↗
File Size	1.88 MB
Description	1080p FPD-Link3 to CSI-2 Deserializer
Datasheet	DS90UH940-Q1-etcTI.pdf

DS90UH940-Q1 Product details

Description

The DS90UH940-Q1 is a FPD-Link III Deserializer which, in conjunction with the DS90UH949/947/929Q1 Serializers, converts 1-lane or 2-lane FPD-Link III streams into a MIPI CSI-2 interface.

Features

1 Supports Pixel Clock Frequency up to 170 MHz for WUXGA (1920x1200) and 1080p60 Resolutions with 24-bit Color Depth.
1-lane or 2-lane FPD-Link III Interface with Deskew Capability.
MIPI D-PHY / CSI-2 Transmitter.
CSI-2 Output Ports with selectable 2- or 4-lane operation.
Supports up to 4 Data Lanes per CSI-2 port, Each Lane up to 1.3 Gbps.
Video formats: RGB888/666/565, YUV422/420, RAW8/10/12.
Programmable Virtual Channel Identifier.
