INA181 - Bidirectional low- and high-side voltage output current-sense amplifiers

Texas Instruments

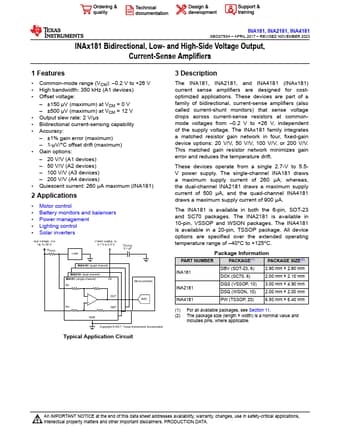

INA181 Datasheet Preview — Preview of INA181 PDF

Datasheet Details

Part number	INA181
Manufacturer	Texas Instruments ↗
File Size	2.57 MB
Description	Bidirectional low- and high-side voltage output current-sense amplifiers
Datasheet	INA181-etcTI.pdf

INA181 Product details

Description

The INA181, INA2181, and INA4181 (INAx181) current sense amplifiers are designed for costoptimized applications. 0.2 V to +26 V, independent of the supply voltage.

Features

Common-mode range (VCM):.
0.2 V to +26 V.
High bandwidth: 350 kHz (A1 devices).
Offset voltage:.
±150 µV (maximum) at VCM = 0 V.
±500 µV (maximum) at VCM = 12 V.
Output slew rate: 2 V/µs.
Bidirectional current-sensing capability.
Accuracy:.
±1% gain error (maximum).
1-µV/°C offset drift (maximum).
Gain options:.
20 V/V (A1 devices).
50 V/V (A2 devices).
100 V/V.
