INA186 - Current-Sense Amplifier

Texas Instruments

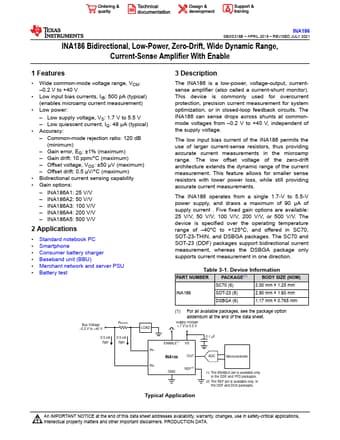

INA186 Datasheet Preview — Preview of INA186 PDF

Datasheet Details

Part number	INA186
Manufacturer	Texas Instruments ↗
File Size	1.82 MB
Description	Current-Sense Amplifier
Datasheet	INA186-etcTI.pdf

INA186 Product details

Description

The INA186 is a low-power, voltage-output, currentsense amplifier (also called a current-shunt monitor). 0.2 V to +40 V, independent of the supply voltage.

Features

Wide common-mode voltage range, VCM:.
0.2 V to +40 V.
Low input bias currents, IIB: 500 pA (typical) (enables microamp current measurement).
Low power:.
Low supply voltage, VS: 1.7 V to 5.5 V.
Low quiescent current, IQ: 48 µA (typical).
Accuracy:.
Common-mode rejection ratio: 120 dB (minimum).
Gain error, EG: ±1% (maximum).
Gain drift: 10 ppm/°C (maximum).
Offset voltage, VOS: ±50 μV (maximum).
