LM4906

Bypass-Capacitor-less Audio Amplifier

Texas Instruments

LM4906 Features

* 1

* 2 Selectable Gain of 6dB (2V/V) or 12dB (4V/V)

* No Output or PSRR Bypass Capacitors Required

* Improved “Click and Pop” Suppression Circuitry

* Very Fast Turn on Time: 5ms (Typ)

* Minimum External Components

* 2.6 - 5.5V Operation

* BTL Out

LM4906 General Description

The LM4906 is an audio power amplifier primarily designed for demanding applications in mobile phones and other portable communication device applications. It is capable of delivering 1W of continuous average power to an 8Ω BTL load with less than 1% distortion (THD+N) from a +5V power supply. The L.

LM4906 Datasheet (1.14 MB)

LM4906 Datasheet Preview — Preview of LM4906 PDF

Datasheet Details

Part number:

LM4906

Manufacturer:

Texas Instruments ↗

File Size:

1.14 MB

Description:

Bypass-capacitor-less audio amplifier.

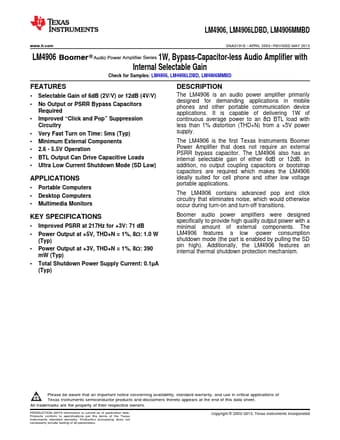

LM4906, LM4906LDBD, LM4906MMBD www.ti.com SNAS191E

* APRIL 2003

* REVISED MAY 2013 LM4906 1W, Bypass-Capacitor-less Audio Amplifie.
