LMH6601-Q1

2.4-V CMOS Operational Amplifier

LMH6601-Q1 Features

* 1 LMH6601-Q1 Qualified for Automotive Applications

* AEC-Q100 Grade 3

* 40°C to 85°C Ambient Operating Temperature Range

* VS = 3.3 V, TA = 25°C, AV = 2 V/V, RL = 150 Ω to V

* , Unless Specified

* 125 MHz

* 3 dB Small Signal Bandwidth

LMH6601-Q1 General Description

The LMH6601 device is a low-voltage (2.4 V to 5.5 V), high-speed voltage feedback operational amplifier suitable for use in a variety of consumer and industrial applications. With a bandwidth of 125 MHz at a gain of +2 and ensured high-output current of 100 mA, the LMH6601 is an ideal choice for vid.

LMH6601-Q1 Datasheet (2.13 MB)

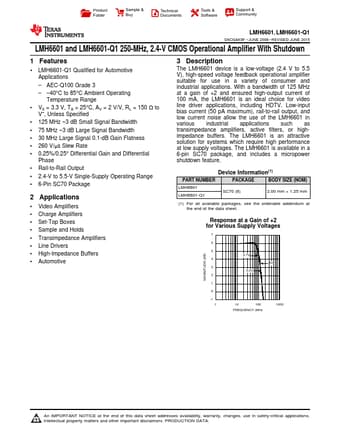

Preview of LMH6601-Q1 PDF

Datasheet Details

Part number:

LMH6601-Q1

Manufacturer:

Texas Instruments ↗

File Size:

2.13 MB

Description:

2.4-v cmos operational amplifier.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LMH6601, LMH6601-Q1 SNOSAK9F

* JUNE 2006

* R.
