LMH6611 - Single Supply 345 MHz Rail-to-Rail Output Amplifiers

Product Overview

Texas Instruments

Datasheet Details

Part number	LMH6611
Manufacturer	Texas Instruments
File Size	2.90 MB
Description	Single Supply 345 MHz Rail-to-Rail Output Amplifiers
Datasheet	LMH6611 Datasheet

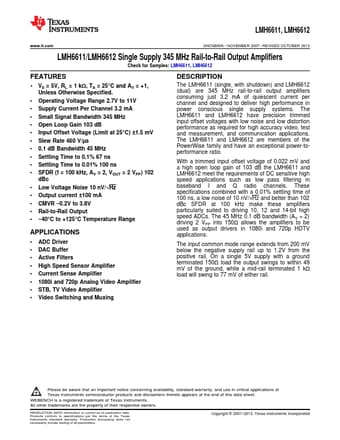

Additional preview pages of the LMH6611 datasheet.

Product details

Description

The LMH6611 (single, with shutdown) and LMH6612 (dual) are 345 MHz rail-to-rail output amplifiers consuming just 3.2 mA of quiescent current per channel and designed to deliver high performance in power conscious single supply systems.

Features

1.
23 VS = 5V, RL = 1 kΩ, TA = 25°C and AV = +1, Unless Otherwise Specified.
Operating Voltage Range 2.7V to 11V.
Supply Current Per Channel 3.2 mA.
Small Signal Bandwidth 345 MHz.
Open Loop Gain 103 dB.
Input Offset Voltage (Limit at 25°C) ±1.5 mV.
Slew Rate 460 V/µs.
0.1 dB Bandwidth 45 MHz.
Settling Time to 0.1% 67 ns.
Settling Time to 0.01% 100 ns.
SFDR (f = 100 kHz, AV = 2, VOUT = 2 VPP) 102 d.
