LMH6619, LMH6618, 1.25mA RRIO Operational Amplifiers

LMH6618, LMH6619 www.ti.com SNOSAV7E * AUGUST 2007 * REVISED OCTOBER 2012 LMH6618 Single/LMH6619 Dual 130 MHz, 1.25 mA RRIO Operati.
The LMH6618 (single, with shutdown) and LMH6619 (dual) are 130 MHz rail-to-rail input and output amplifiers designed for ease of use in a wide range o.

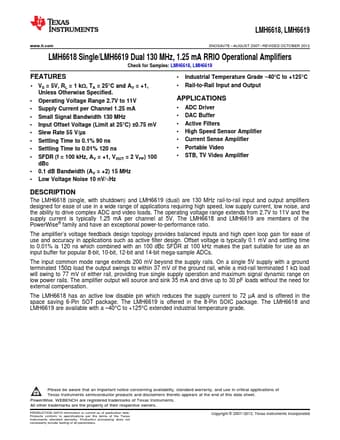

datasheet Preview Page 1 from Datasheet4u.com

LMH6618-etcTI.pdf

LMH6619 Datasheet Preview — This datasheet PDF includes multiple part numbers: LMH6619, LMH6618. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LMH6619, LMH6618

Manufacturer:

Texas Instruments ↗

File Size:

2.64 MB

Description:

1.25mA RRIO Operational Amplifiers

Note:

This datasheet PDF includes multiple part numbers: LMH6619, LMH6618.
Please refer to the document for exact specifications by model.

Features

* 1
* 23 VS = 5V, RL = 1 kΩ, TA = 25°C and AV = +1, Unless Otherwise Specified.
* Operating Voltage Range 2.7V to 11V
* Supply Current per Channel 1.25 mA
* Small Signal Bandwidth 130 MHz
* Input Offset Voltage (Limit at 25°C) ±0.75 mV
* Slew Rate 55 V/µs

Applications

* ADC Driver
* DAC Buffer
* Active Filters
* High Speed Sensor Amplifier
* Current Sense Amplifier
* Portable Video
