LMH6612, LMH6611 - Single Supply 345 MHz Rail-to-Rail Output Amplifiers

LMH6612 Description

LMH6611, LMH6612 www.ti.com SNOSB00K * NOVEMBER 2007 * REVISED OCTOBER 2013 LMH6611/LMH6612 Single Supply 345 MHz Rail-to-Rail Outp.
The LMH6611 (single, with shutdown) and LMH6612 (dual) are 345 MHz rail-to-rail output amplifiers consuming just 3.

LMH6612 Features

* 1
* 23 VS = 5V, RL = 1 kΩ, TA = 25°C and AV = +1, Unless Otherwise Specified.
* Operating Voltage Range 2.7V to 11V
* Supply Current Per Channel 3.2 mA
* Small Signal Bandwidth 345 MHz
* Open Loop Gain 103 dB
* Input Offset Voltage (Limit at 25°C) ±1.5

LMH6612 Applications

* ADC Driver
* DAC Buffer
* Active Filters
* High Speed Sensor Amplifier
* Current Sense Amplifier
* 1080i and 720p Analog Video Amplifier
* STB, TV Video Amplifier

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LMH6612, LMH6611. Please refer to the document for exact specifications by model.

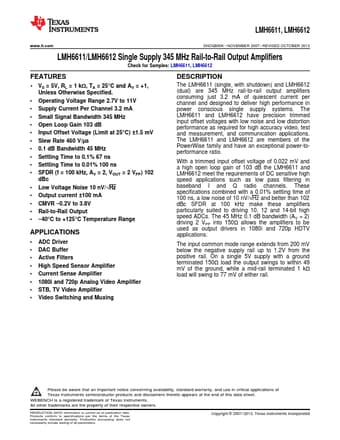

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LMH6612, LMH6611
Manufacturer
Texas Instruments ↗
File Size
2.90 MB
Datasheet
LMH6611-etcTI.pdf
Description
Single Supply 345 MHz Rail-to-Rail Output Amplifiers
Note
This datasheet PDF includes multiple part numbers: LMH6612, LMH6611.
Please refer to the document for exact specifications by model.
