LMH6609 - 900MHz Voltage Feedback Op Amp

LMH6609 Description

LMH6609 900MHz Voltage Feedback Op Amp August 2003 LMH6609 900MHz Voltage Feedback Op Amp General .
The LMH6609 is an ultra wideband, unity gain stable, low power, voltage feedback op amp that offers 900MHz bandwidth at a gain of 1, 1400V/µs slew rat.

LMH6609 Features

* n n n n n n n n n n n n 900MHz
* 3dB bandwidth (AV = 1) Large signal bandwidth and slew rate 100% tested 280MHz
* 3dB bandwidth (AV = +2, VOUT = 2VPP) 90mA linear output current 1400V/µs slew rate Unity gain stable < 1mV input Offset voltage 7mA Supply current (no load) 6V to 12V suppl

LMH6609 Applications

* The 90mA of linear output current makes the LMH6609 suitable for multiple video loads and cable driving applications as well. The recommended supply voltage range of 6V to 12V and is specified at 6.6 and 10V. A low supply current of 7mA (at 10V supply) makes the LMH6609 useful in a wide variety of

📥 Download Datasheet

Preview of LMH6609 PDF

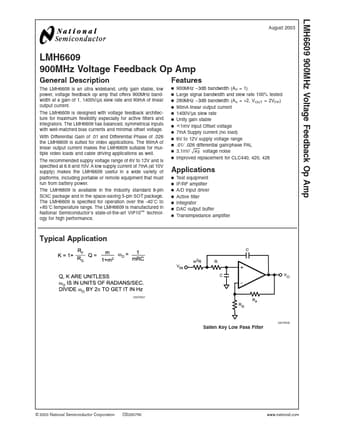

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LMH6609
Manufacturer
National Semiconductor
File Size
641.84 KB
Datasheet
LMH6609_NationalSemiconductor.pdf
Description
900MHz Voltage Feedback Op Amp
