LMH6622

Dual Wideband Low Noise 160MHz Operational Amplifiers

LMH6622 Features

* 1 VS = ±6 V, TA = 25°C, Typical Values Unless Specified

* Bandwidth (AV = +2) 160 MHz

* Supply Voltage Range ±2.5 V to ±6 V; + 5 V to +12

* Slew Rate 85V/μs

* Supply Current 4.3 mA/amp

* Input Common Mode Voltage

* 4.75 V to +5.7 V

* Ou

LMH6622 General Description

The LMH6622 is a dual high speed voltage feedback operational amplifier specifically optimized for low noise. A voltage noise specification of 1.6nV/√Hz, a current noise specification 1.5pA/√Hz, a bandwidth of 160 MHz, and a harmonic distortion specification that exceeds 90 dBc combine to make the L.

LMH6622 Datasheet (1.71 MB)

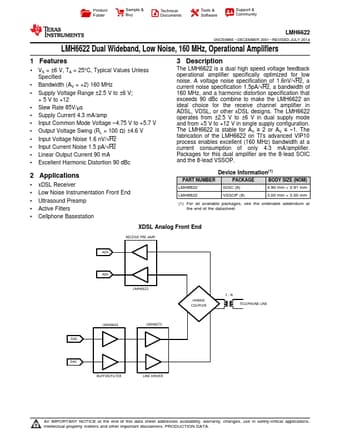

Preview of LMH6622 PDF

Datasheet Details

Part number:

LMH6622

Manufacturer:

Texas Instruments ↗

File Size:

1.71 MB

Description:

Dual wideband low noise 160mhz operational amplifiers.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LMH6622 SNOS986E

* DECEMBER 2001

* REVISED J.
