LMH6629 - High-Speed Operational Amplifier

Product Overview

Texas Instruments

Datasheet Details

Part number	LMH6629
Manufacturer	Texas Instruments
File Size	9.31 MB
Description	High-Speed Operational Amplifier
Datasheet	LMH6629 Datasheet

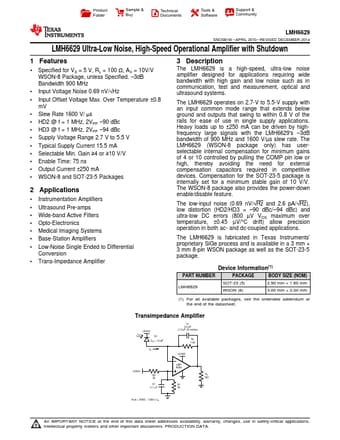

Additional preview pages of the LMH6629 datasheet.

Product details

Description

The LMH6629 is a high-speed, ultra-low noise amplifier designed for applications requiring wide bandwidth with high gain and low noise such as in communication, test and measurement, optical and ultrasound systems.

Features

1 Specified for VS = 5 V, RL = 100 Ω, AV = 10V/V WSON-8 Package, unless Specified.
3dB Bandwidth 900 MHz.
Input Voltage Noise 0.69 nV/√Hz.
Input Offset Voltage Max. Over Temperature ±0.8 mV.
Slew Rate 1600 V/ μs.
HD2 @ f = 1 MHz, 2VPP.
90 dBc.
HD3 @ f = 1 MHz, 2VPP.
94 dBc.
Supply Voltage Range 2.7 V to 5.5 V.
Typical Supply Current 15.5 mA.
Selectable Min. Gain ≥4 or ≥10 V/V.
Enabl.
