LMH6628QML

Dual Wideband Low Noise Voltage Feedback Op Amp

Texas Instruments

LMH6628QML Features

* 1

* 2 Available with Radiation Ensured 300 krad(Si)

* Wide Unity Gain Bandwidth: 300MHz

* Low Noise: 2nV/√Hz

* Low Distortion:

* 65/

* 74dBc (10MHz)

* Settling Time: 12ns to 0.1%

* Wide Supply Voltage Range: ±2.5V to ±6V

* High Outp

LMH6628QML General Description

The LMH6628 is a high speed dual op amp that offers a traditional voltage feedback topology featuring unity gain stability and slew enhanced circuitry. The LMH6628's low noise and very low harmonic distortion combine to form a wide dynamic range op amp that operates from a single (5V to 12V) or dual.

LMH6628QML Datasheet (766.59 KB)

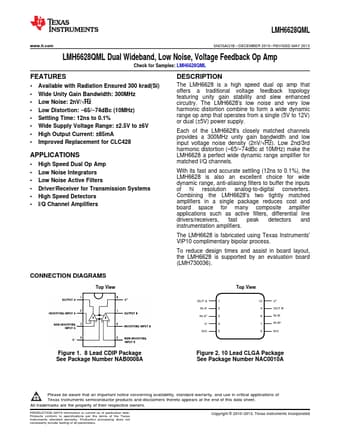

LMH6628QML Datasheet Preview — Preview of LMH6628QML PDF

Datasheet Details

Part number:

LMH6628QML

Manufacturer:

Texas Instruments ↗

File Size:

766.59 KB

Description:

Dual wideband low noise voltage feedback op amp.
LMH6628QML www.ti.com SNOSAQ1B

* DECEMBER 2010

* REVISED MAY 2013 LMH6628QML Dual Wideband, Low Noise, Voltage Feedback Op Amp Chec.
