SN74ALVCH16721

3.3-V 20-BIT FLIP-FLOP

SN74ALVCH16721 Features

* Member of the Texas Instruments Widebus™ Family

* EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process

* ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)

* Latch-Up Performance Exceeds 250 mA

SN74ALVCH16721 General Description

This 20-bit flip-flop is designed specifically for 1.65-V to 3.6-V VCC operation. The 20 flip-flops of the SN74ALVCH16721 are edge-triggered D-type flip-flops with qualified clock storage. On the positive transition of the clock (CLK) input, the device provides true data at the Q outputs if the cloc.

SN74ALVCH16721 Datasheet (1.10 MB)

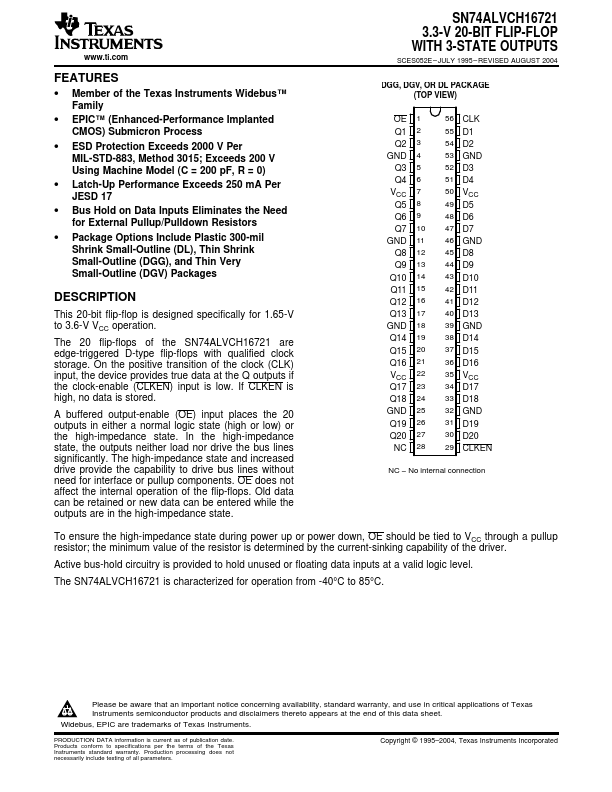

Preview of SN74ALVCH16721 PDF

Datasheet Details

Part number:

SN74ALVCH16721

Manufacturer:

Texas Instruments ↗

File Size:

1.10 MB

Description:

3.3-v 20-bit flip-flop.

📁 Related Datasheet

SN74ALVCH162244 16-BIT BUFFER/DRIVER (Texas Instruments)

SN74ALVCH162260 12-BIT TO 24-BIT MULTIPLEXED D-TYPE LATCH (Texas Instruments)

SN74ALVCH162268 12-BIT TO 24-BIT REGISTERED BUS EXCHANGER (Texas Instruments)

SN74ALVCH162334 16-BIT UNIVERSAL BUS DRIVER (Texas Instruments)

SN74ALVCH162344 1-BIT TO 4-BIT ADDRESS DRIVER (Texas Instruments)

SN74ALVCH162373 16-BIT TRANSPARENT D-TYPE LATCH (Texas Instruments)

SN74ALVCH162374 16-BIT EDGE-TRIGGERED D-TYPE FLIP-FLOP (Texas Instruments)

SN74ALVCH16240 16-BIT BUFFER/DRIVER (Texas Instruments)

SN74ALVCH16244 16-BIT BUFFER/DRIVER (Texas Instruments)

SN74ALVCH16245 16-Bit Bus Transceiver (Texas Instruments)

TAGS

SN74ALVCH16721 3.3-V 20-BIT FLIP-FLOP Texas Instruments

Image Gallery

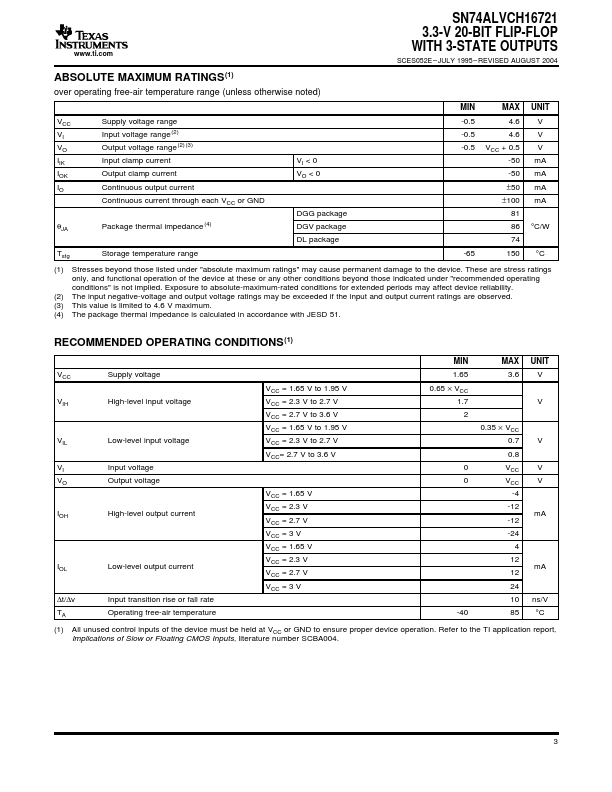

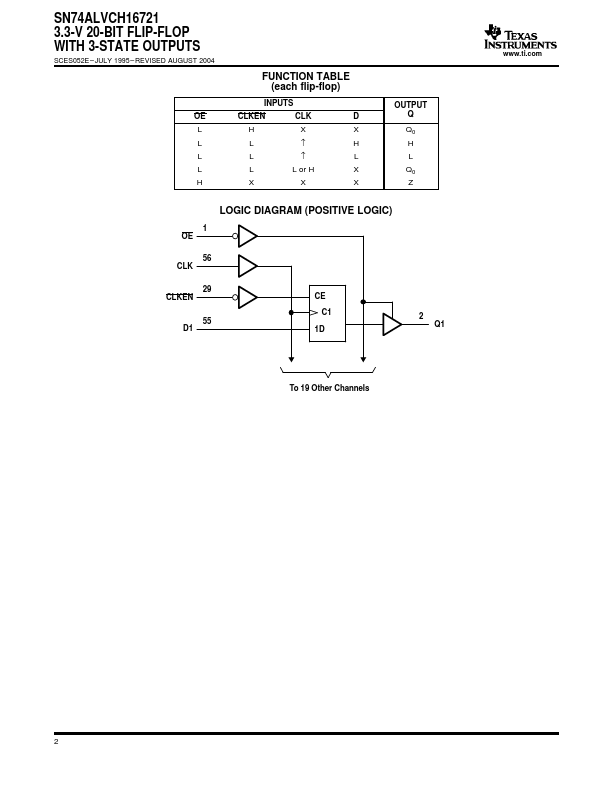

SN74ALVCH16721 Datasheet Preview Page 2 SN74ALVCH16721 Datasheet Preview Page 3
