iT3011E - High-sensitivity limiter amplifier

📥 Download Datasheet

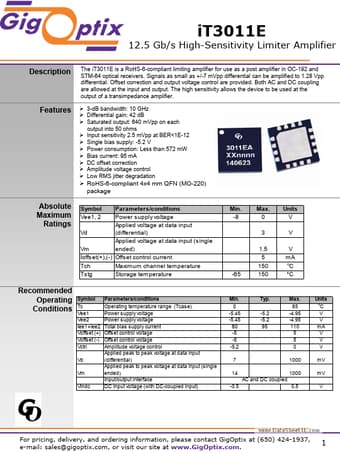

iT3011E Datasheet Preview — Preview of iT3011E PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: iT3011E
Manufacturer: gigoptix
File Size: 1.79 MB
Datasheet: iT3011E_gigoptix.pdf
Description: High-sensitivity limiter amplifier

iT3011E Product details

Description

The iT3011E is a RoHS-6-compliant limiting amplifier for use as a post amplifier in OC-192 and STM-64 optical receivers.

Features

www. DataSheet4U. com ¾ RoHS-6-compliant 4x4 mm QFN (MO-220) package Absolute Maximum Ratings Symbol Vee1, 2 Parameters/conditions Power supply voltage Applied voltage at data input Vd (differential) Applied voltage at data input (single Vm ended) Ioffset(+),(-) Offset control current Tch Tstg Maximum channel temperature Storage temperature Min. -8 Max. 0 3 1.5 5 Units V V V mA C °C o -65 150 150 Recommended Operating Conditions Symbol Tc Vee1 Vee2 Iee1+Iee2 Voffset (+) Voffset (-) Vct.
