iT3012E - Differential-to-single- ended amplifier

📥 Download Datasheet

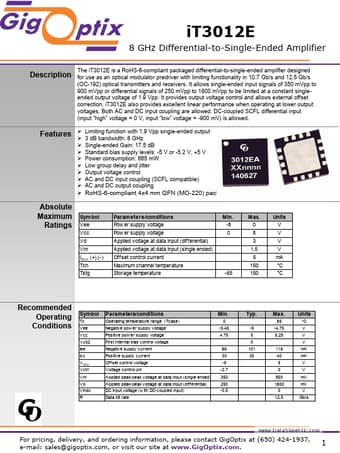

iT3012E Datasheet Preview — Preview of iT3012E PDF

Datasheet Details

Part number: iT3012E
Manufacturer: gigoptix
File Size: 413.95 KB
Datasheet: iT3012E_gigoptix.pdf
Description: Differential-to-single- ended amplifier

iT3012E Product details

Description

The iT3012E is a RoHS-6-compliant packaged differential-to-single-ended amplifier designed for use as an optical modulator predriver with limiting functionality in 10.7 Gb/s and 12.5 Gb/s (OC-192) optical transmitters and receivers.

Features

www. DataSheet4U. com RoHS-6-compliant 4x4 mm QFN (MO-220) package Absolute Maximum Ratings Sym bol Vee Vcc Vd Vm IDCin (+),(-) Tch Tstg Param eters/conditions Pow er supply voltage Pow er supply voltage Applied voltage at data input (differential) Applied voltage at data input (single ended) Offset control current Maximum channel temperature Storage temperature Min. -8 0 Max. 0 8 3 1.5 5 150 Units V V V V mA °C °C -65 150 Recommended Operating Conditions Symbol Tc Vee Vcc Vcb2 Iee Icc.
