iT3010 - 10 GHz medium-gain differential amplifier

📥 Download Datasheet

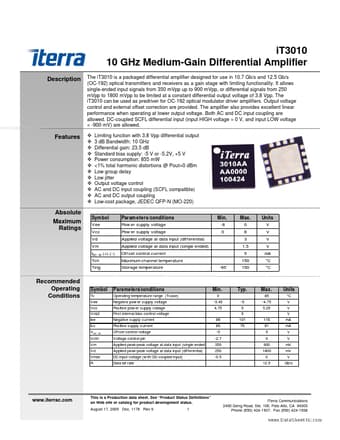

iT3010 Datasheet Preview — Preview of iT3010 PDF

Datasheet Details

Part number: iT3010
Manufacturer: Iterra
File Size: 926.32 KB
Datasheet: iT3010_Iterra.pdf
Description: 10 GHz medium-gain differential amplifier

iT3010 Product details

Description

The iT3010 is a packaged differential amplifier designed for use in 10.7 Gb/s and 12.5 Gb/s (OC-192) optical transmitters and receivers as a gain stage with limiting functionality.

Features

Absolute Maximum Ratings Param eters/conditions Pow er supply voltage Pow er supply voltage Applied voltage at data input (differential) Applied voltage at data input (single ended) Min. -8 0 Max. 0 8 3 1.5 5 150 Units V V V V mA °C °C (+),(-) Offset control current Maximum channel temperature Storage temperature -65 Tch Tstg 150 Recommended Operating Conditions Symbol Tc Vee Vcc Vcb2 Iee Icc V DC Vm Vd Vindc R IN Parameters/conditions Operating temperature range (Tcase) Negative pow.
