iT3011

12.5-Gb/s high-sensitivity limiter amplifier

iT3011 Features

* www.DataSheet4U.com Absolute Maximum Ratings S ymbol Vee1,2 Vd Vm T ch T stg Parameters/conditions Power supply voltage Applied voltage at data input (differential) Applied voltage at data input (single ended) Maximum channel temperature Storage temperature Min. -8 Max. 0 3 1.5 5 150 Units V V

iT3011 General Description

The iT3011 is a limiting amplifier for use as a post amplifier in OC-192 and STM-64 optical receivers. Signals as small as +/-7 mVpp differential can be amplified to 1.28 Vpp differential. Offset correction and output voltage control are provided. Both AC and DC coupling are allowed at the input and.

iT3011 Datasheet (1.66 MB)

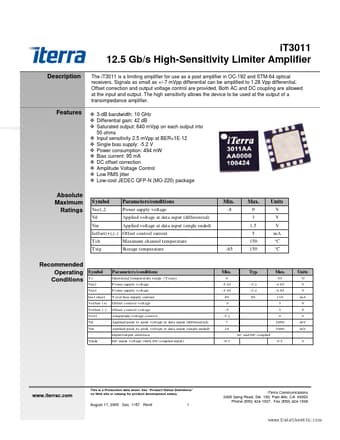

iT3011 Datasheet Preview — Preview of iT3011 PDF

Datasheet Details

Part number:

iT3011

Manufacturer:

Iterra

File Size:

1.66 MB

Description:

12.5-gb/s high-sensitivity limiter amplifier.
