iT3017

5-Gb/s high-sensitivity limiter amplifier

iT3017 Features

* www.DataSheet4U.com ™ ™ ™ ™ ™ ™ ™ ™ ™ ™ 3-dB bandwidth: 5 GHz Differential gain: 42 dB Saturated output: 640 mVpp on each output into 50 ohms Single bias supply: -5.2 V Power consumption: 494 mW Bias current: 95 mA DC offset correction Amplitude voltage control Low RMS jitter Low-cost JEDEC QFP-N

iT3017 General Description

The iT3017 is a limiting amplifier for use as a post amplifier in optical receivers. Signals as small as +/-7 mVpp differential can be amplified to 1.28 Vpp differential. Offset correction and output voltage control are provided. Both AC and DC coupling are allowed at the input and output. The high .

iT3017 Datasheet (882.27 KB)

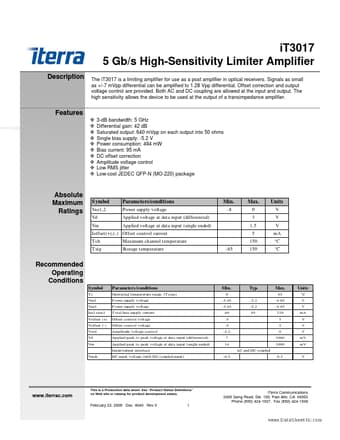

Preview of iT3017 PDF

Datasheet Details

Part number:

iT3017

Manufacturer:

Iterra

File Size:

882.27 KB

Description:

5-gb/s high-sensitivity limiter amplifier.
