iT3015 - 10 GHz high-voltage differential amplifier

📥 Download Datasheet

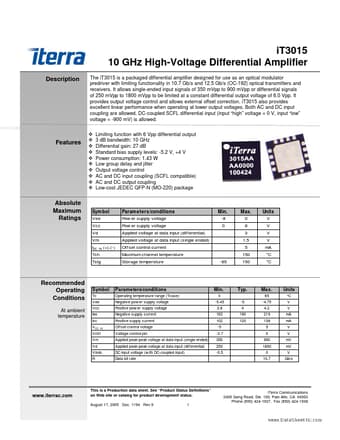

iT3015 Datasheet Preview — Preview of iT3015 PDF

Datasheet Details

Part number: iT3015
Manufacturer: Iterra
File Size: 538.40 KB
Datasheet: iT3015_Iterra.pdf
Description: 10 GHz high-voltage differential amplifier

iT3015 Product details

Description

The iT3015 is a packaged differential amplifier designed for use as an optical modulator predriver with limiting functionality in 10.7 Gb/s and 12.5 Gb/s (OC-192) optical transmitters and receivers.

Features

Absolute Maximum Ratings Sym bol Vee Vcc Vd Vm IDC IN Param eters/conditions Pow er supply voltage Pow er supply voltage Applied voltage at data input (differential) Applied voltage at data input (single ended) Min. -8 0 Max. 0 8 3 1.5 5 150 Units V V V V mA °C °C (+),(-) Offset control current Maximum channel temperature Storage temperature -65 Tch Tstg 150 Recommended Operating Conditions At ambient temperature Symbol Tc Vee Vcc Iee Icc V DC Vm Vd Vindc R IN Parameters/conditions.
