20N50 Datasheet, Mosfet, nELL

20N50 Features

  • Mosfet RDS(ON) = 0.23Ω@VGS = 10V Ultra low gate charge(60nC max.) Low reverse transfer capacitance (CRSS = 27pF typical) Fast switching capability 100% avalanche energy specified Improved dv/d

PDF File Details

Part number:

20N50

Manufacturer:

nELL

File Size:

346.46kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The Nell 20N50 is a three-terminal silicon device with current conduction capability of 20A, fast switching speed, low on-state resis

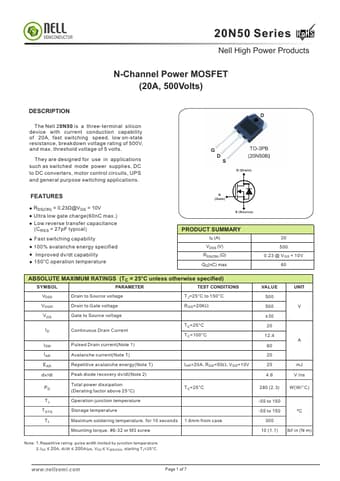

Datasheet Preview: 20N50 📥 Download PDF (346.46kb)
Page 2 of 20N50 Page 3 of 20N50

20N50 Application

  • Applications such as switched mode power supplies, DC to DC converters, motor control circuits, UPS and general purpose switching applications. D
