74HC4511D

BCD to 7-segment latch/decoder/driver

74HC4511D Features

* Complies with JEDEC standard no. 7A

* Input levels:

* For 74HC4511: CMOS level

* For 74HCT4511: TTL level

* Latch storage of BCD inputs

* Blanking input

* Lamp test input

* Driving common cathode LED displays

* Guaranteed 10 mA drive capability per output

74HC4511D General Description

The 74HC4511; 74HCT4511 is a BCD to 7-segment latch/decoder/driver with four address inputs (A, B, C, D), a latch enable input (LE), a ripple blanking input (BI), a lamp test input (LT), and seven segment outputs (a to g). When LE is LOW, the state of the segment outputs (a to g) is determined by t.

74HC4511D Datasheet (771.91 KB)

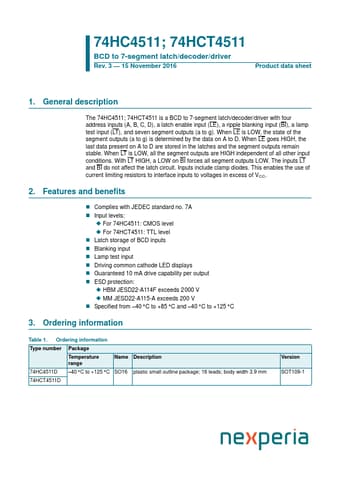

Preview of 74HC4511D PDF

Datasheet Details

Part number:

74HC4511D

Manufacturer:

nexperia ↗

File Size:

771.91 KB

Description:

Bcd to 7-segment latch/decoder/driver.
