74HC4510 Datasheet - Philips

74HC4510 BCD up/down counter

The 74HC/HCT4510 are high-speed Si-gate CMOS devices and are pin compatible with the “4510” of the “4000B” series. They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT4510 are edge-triggered synchronous up/down BCD counters with a clock input (CP), an up/down count control input.

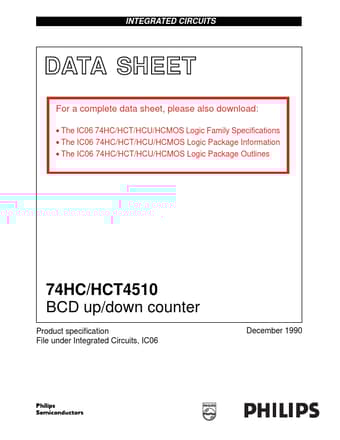

INTEGRATED CIRCUITS DATA SHEET For a complete data sheet, please also download: The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications The IC06 74HC/HCT/HCU/HCMOS Logic Package Information The IC06 74HC/HCT/HCU/HCMOS Logic Package Outlines www.DataSheet.net/ 74HC/HCT4510 BCD up/down counter Product specification File under Integrated Circuits, IC06 December 1990 Datasheet pdf - http://www.DataSheet4U.co.kr/ Philips Semiconductors Product specification BCD up/d.
