74HC4515D Datasheet, Decoder/demultiplexer, nexperia

74HC4515D Features

  • Decoder/demultiplexer
  • Inverting outputs
  • CMOS input levels
  • 16-line demultiplexing capability
  • Decodes 4 binary-coded inputs into 16 mutually-exclusive outputs

PDF File Details

Part number:

74HC4515D

Manufacturer:

nexperia ↗

File Size:

200.95kb

Download:

📄 Datasheet

Description:

4-to-16 line decoder/demultiplexer. The 74HC4515 is a 4-to-16 line decoder/demultiplexer having four binary weighted address inputs (A0 to A3) with latches, a latch ena

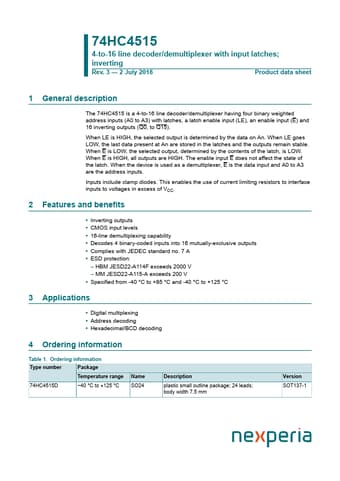

Datasheet Preview: 74HC4515D 📥 Download PDF (200.95kb)
Page 2 of 74HC4515D Page 3 of 74HC4515D

74HC4515D Application

  • Applications
  • Digital multiplexing
  • Address decoding
  • Hexadecimal/BCD decoding 4 Ordering information Table 1. Orderin
